Conway Tooling Bar for Bobst Die Cutters

CMI # 12-320-0-15-00

Tooling bar used in stripping section to hold upper or lower stripping pins for Bobst die cutters. These fixed-length bars are made to your required length and sold by the inch.  Each end of the tooling bar will be able to accept the end clamp assembly (sold separately).  See documentation for details.





1

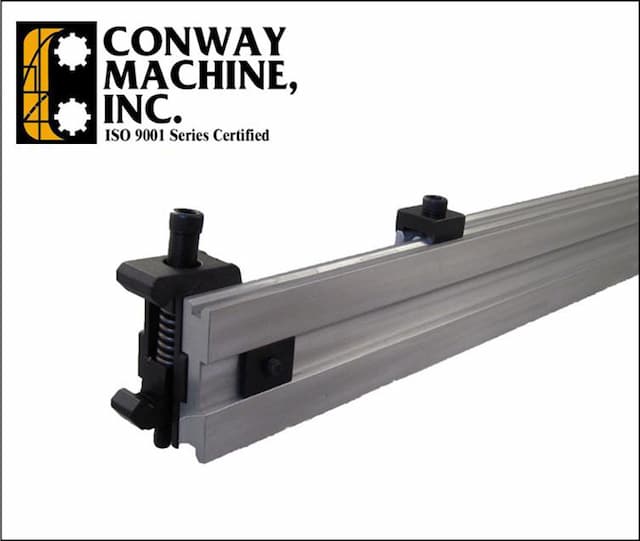

  • Telescopic Tooling Bars product image 1

    Conway Telescopic Tooling Bar ...

    Conway's Complete Telescopic Tooling Bar consisting of two end clamp assemblies, two sliding clamp assemblies and two tooling bars for Bobst die cutters.

  • Tooling Bar End Clamp Assembly product image 1

    Conway Tooling Bar End Clamp A...

    Conway Tooling Bar End Clamp Assembly used to attach the tooling bar to the stripping frame.

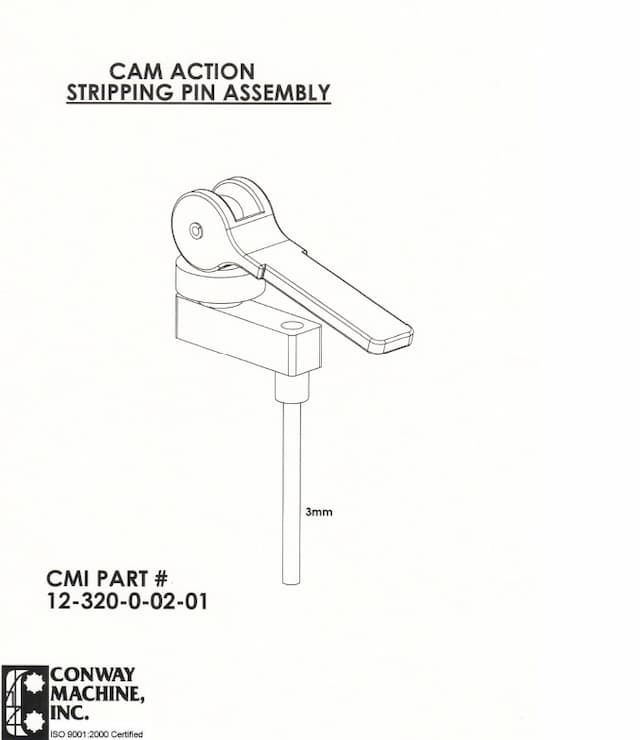

  • Cam Action Upper Stripping Pin Assembly product image 1

    Conway Cam Action Upper Stripp...

    Conway Cam Action Upper Stripping Pin Assembly used with slotted honeycomb style upper stripping plate for Bobst die cutters.

  • Conway Complete Upper Strippin...

    Conway complete upper stripping pin assembly fits most Bobst & Sanwa die cutters. (3-pin)
